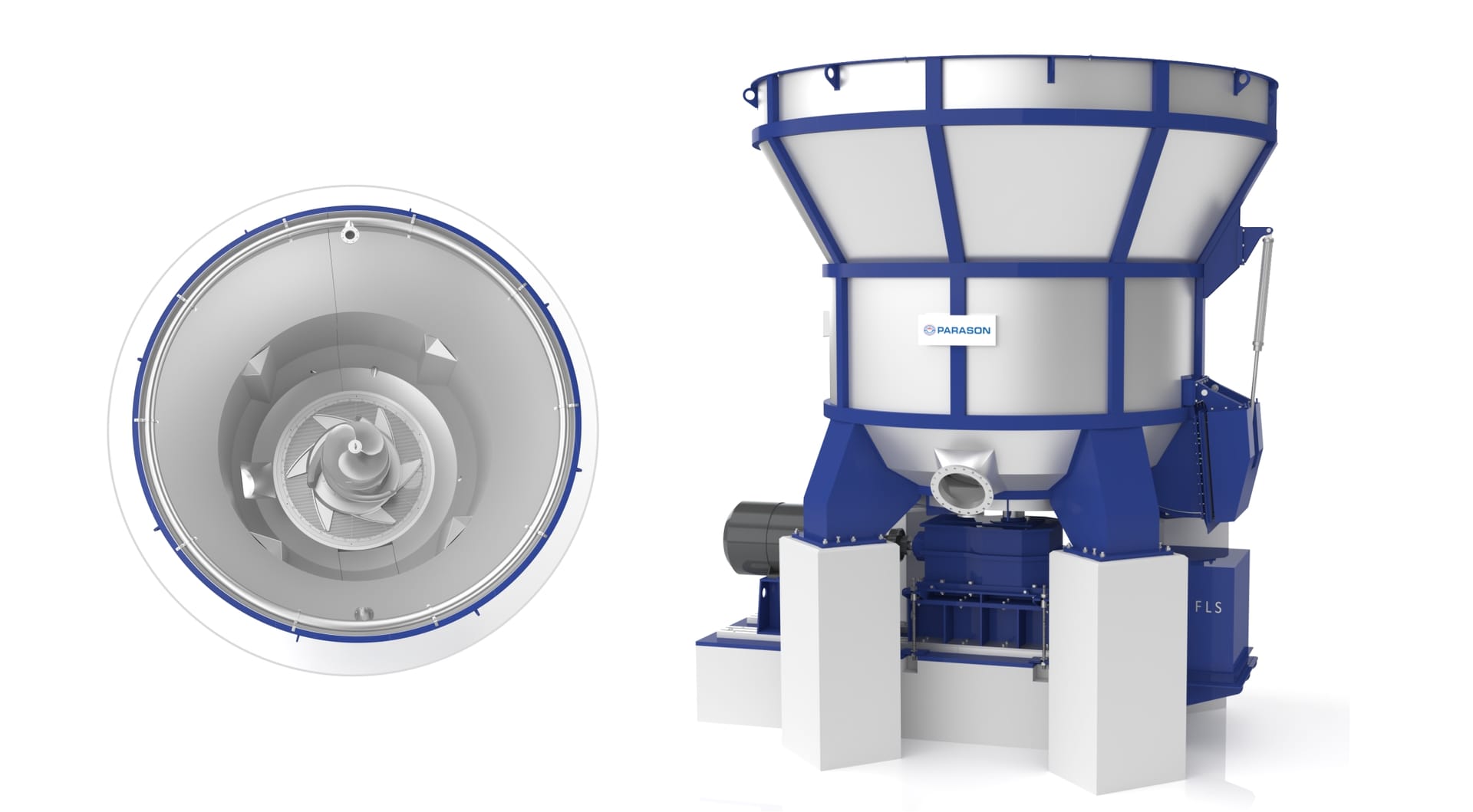

Cup Stock Pulper – CSP

Send us an enquiry
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Applications & Features

The Cup Stock pulper handles heavy materials like cupstock and of 12-15% contaminant level. After slushing at 12-15% consistency, pulp get extracted by perforated screen plate. It’s extra volume allows up 6% dilution and faster discharge and low batch time.

Separated plastic kept unleashed and sent to detracting equipment for further process.


  • Better slushing
  • High-speed operation execution
  • Easy to install
  • Low maintenance requirements
  • Lower power consumption & greater throughput
  • Longer service life

Technical Specications:

CSP Model CSP 36 CSP 54 CSP 72
TPD 50 75 100
Tub Volume 36 54 72
Power (kW) / Speed (Rpm) 315/1500 500/1500 630/1500

* Production – TPD, Power kW depends on type of raw material cycle time, pulping time and technological properties
** Gear Drive | * Due to constant research, specifications are subject to change
