Refine Plate
Conical Fillings
Complete range of conical refiner fillings — Monoblock, Tricone, and Cone-Flow designs — compatible with Jordan, Claflin, JC-0, and RTC refiners.
Loading...
Complete range of conical refiner fillings — Monoblock, Tricone, and Cone-Flow designs — compatible with Jordan, Claflin, JC-0, and RTC refiners.
Parason offers the most comprehensive range of conical refiner fillings in the industry — from shallow-angle JC-0 cone-flow designs to low-angle monoblock, high-angle Claflin, and tricone configurations. Every filling family is precision-engineered in Parason's own foundry to deliver optimal fibre treatment for specific refiner models and paper grades.
Parason Conical Refiner Fillings deliver superior fiber processing performance with proven efficiency and durability. Available in a wide range of designs and sizes, these fillings are engineered to meet diverse industry needs and optimize refining operations.
Manufactured from high-strength, corrosion-resistant stainless steel alloy, they ensure uniform wear, longer life, and consistent refining quality. Parason's innovative ERP® enhances refining efficiency while reducing energy consumption.
| TYPE | RIB WIDTH | GROOVE WIDTH | P-PARASON |
|---|---|---|---|
| Microbar | 1.2 | 1.9 | MB - Extra Low Intensity Refining |
| Welded | 1.6 | 1.6 | SW - Low Intensity Refining |
| PSF | 2.0 | 3.0 | SF - Short Fibre Fine |
| PSM | 2.5 | 3.5 | SM - Short Fibre Medium |
| PSC | 3.0 | 4.0 | SC - Short Fibre Coarse |
| PLF | 4.0 | 5.0 | SF - Short Fibre Fine |
| PLM | 4.5 | 6.0 | SM - Short Fibre Medium |
| PLC | 5.5 | 7.0 | SC - Short Fibre Coarse |
| PFS | 4.0 | 3.0 | FS - Fibrillating Short |
| PFL | 8.0 | 5.0 | FL - Fibrillating Long |
| PTM | 3.0 | 7.0 | TM - Trimming Medium |
| PTC | 4.5 | 8.5 | TC - Trimming Coarse |
| PMX | 4.5 | 3.6 | MX - Mixed Fibre |

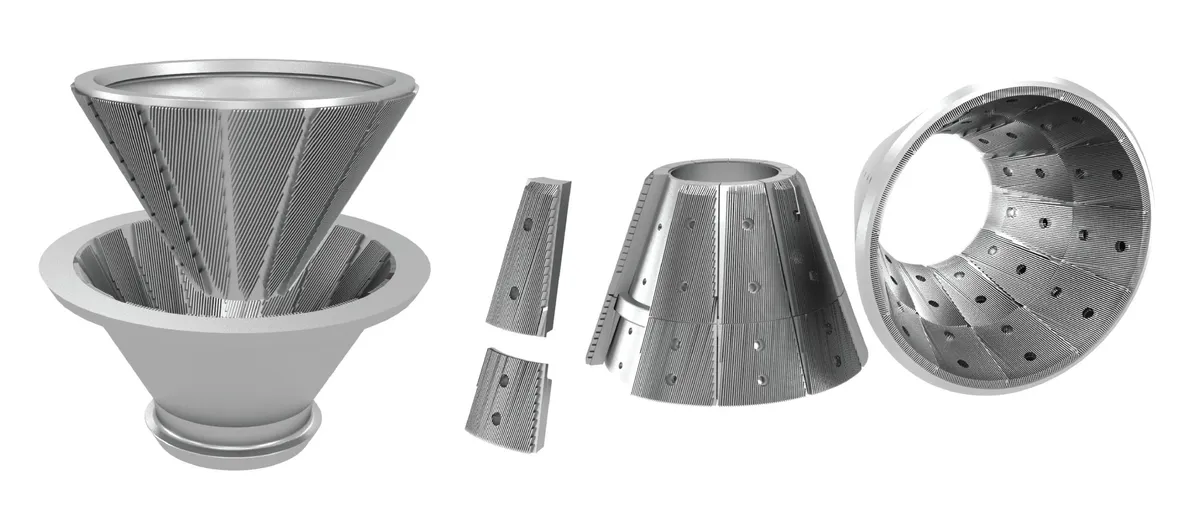

Parason offers cast conical fillings for all JC-0 refiner models, available in various bar patterns to suit diverse refining applications. These fillings ensure longer refining life with reduced energy consumption with custom designs.

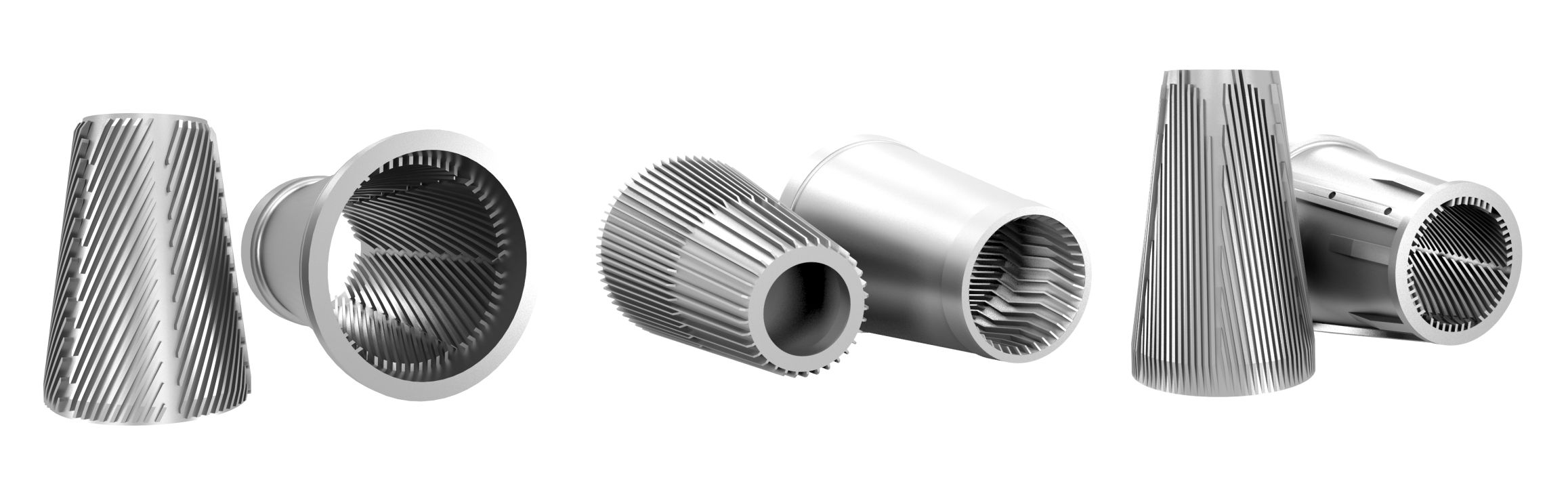

Parason cast and duly machined fillings are available for all models of conical refiners suitable for Jordan 1R, 2R, 3R, Jones, and Fibre master, etc.
These single piece cast fillings with precision grinding of sharp edges ensures minimum wear to optimize life and performance. Fillings are built with special treatment for long lasting services.

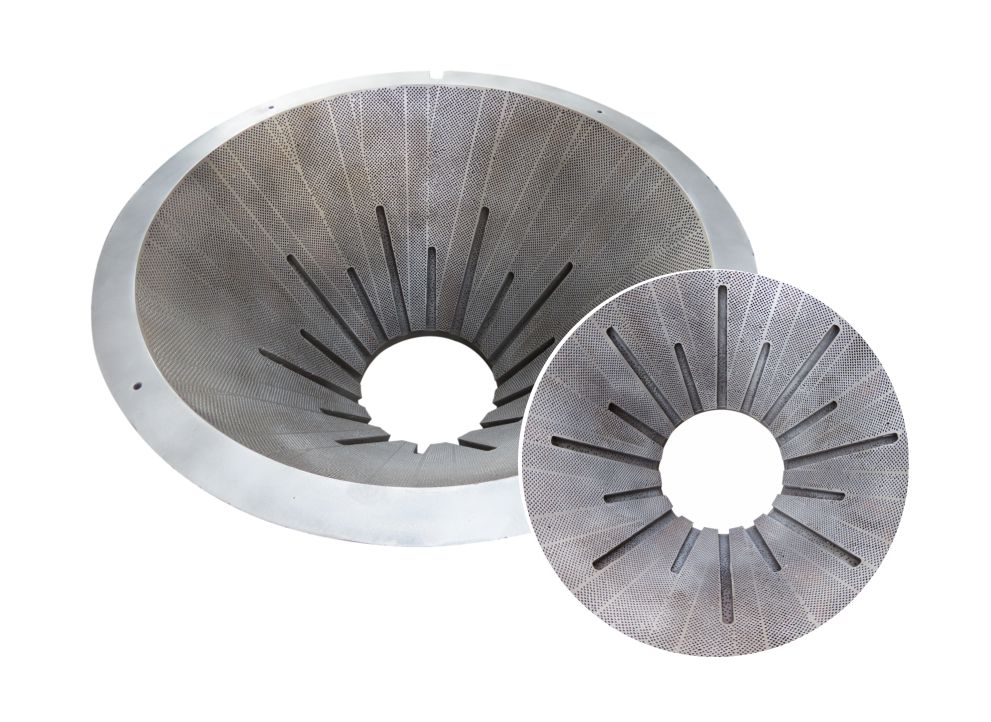

Cotton Fibre Fillings

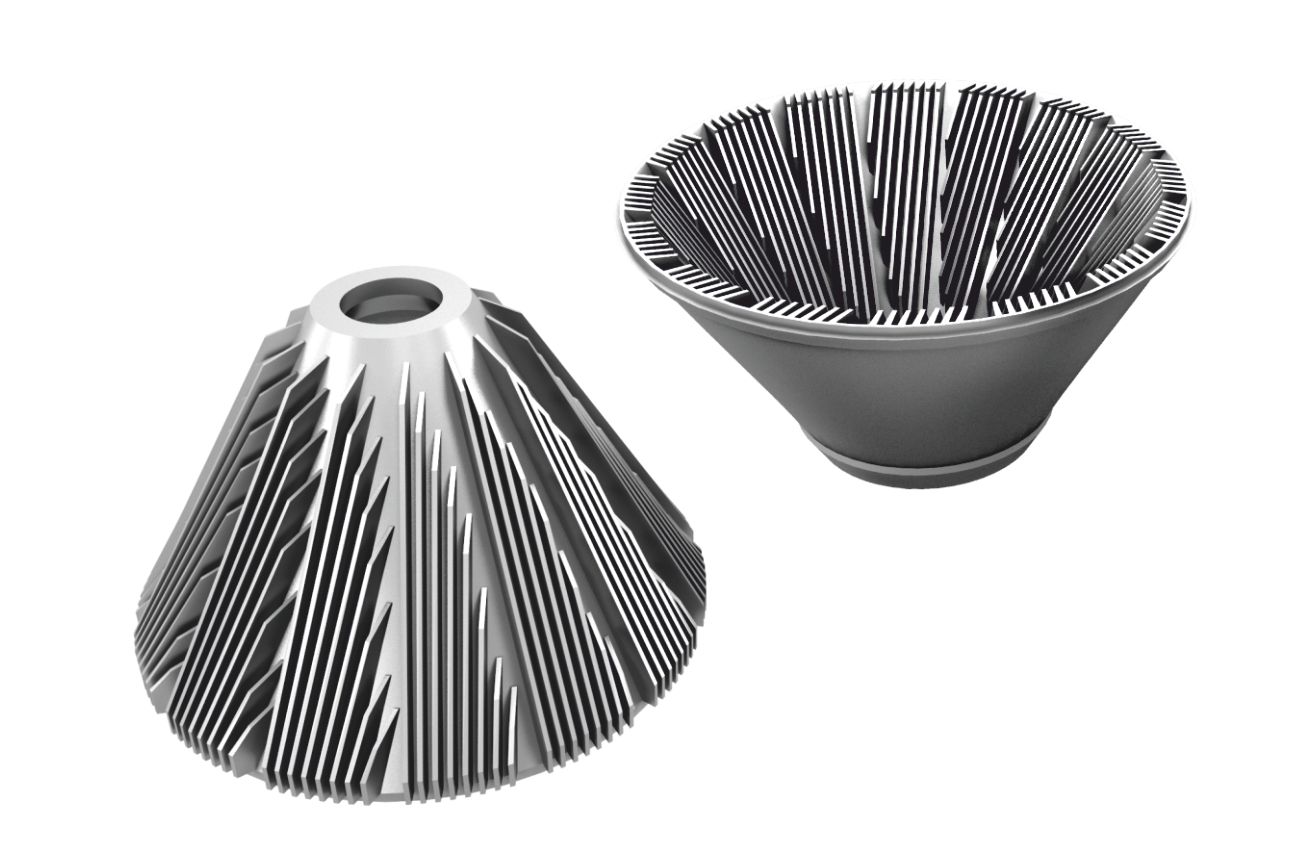

Parason manufactures Claflin fillings for every model like 101, 202, 303, F9 refiners. The fillings are cast stainless steel offering superior performance in the development of fibre. Long life of the fillings ensure better economy.
Quality Control: Metallurgical quality control is precisely maintained at every step from raw material, heat treating to final testing desired hardness and wear resistance that virtually eliminates edge rounding. Wear resistance and toughness results in long productive life.

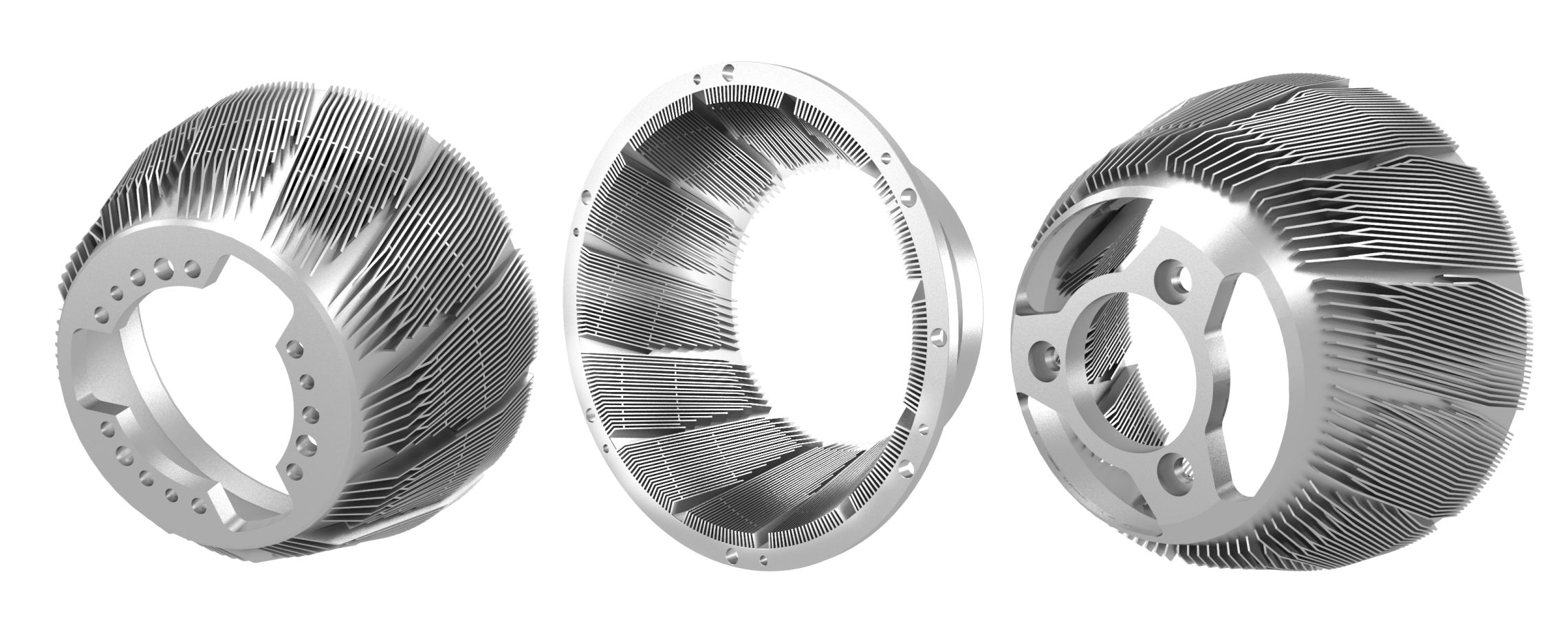

Parason cast and fabricated and duly machined fillings are available for almost all model of RTC 1000, RTC 2000, RTC 3000, and RTC 4000 suitable for different grades of paper application. We supply fillings both in cast as well as fabricated type.

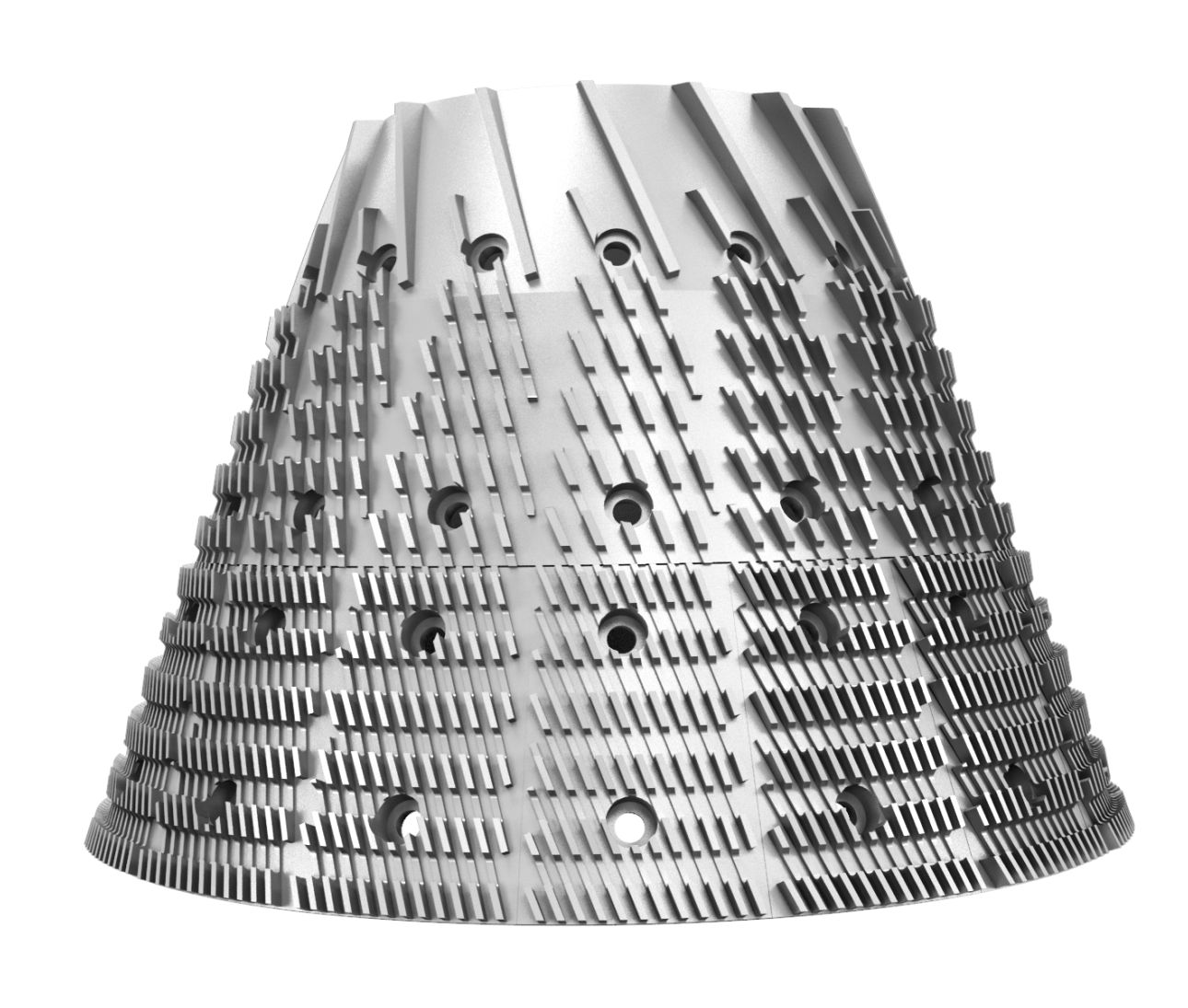

Conical Disperser Fillings
Various standard patterns for HW and SW refining, for broke refining and for refining of mechanical pulps, and various specific fibre types. Fine edge refiner plates suitable to the application for improved capacities in both short fibre and long fibre refining.
Quick selection guide by refiner model
Jordan 1R / 2R / 3R / Jones / Fibre Master
Single-piece cast fillings with precision-ground edges for low-angle conical refiners. Ideal for general-purpose refining of virgin and recycled pulps.
Claflin 101 / 202 / 303 / F9
Cast stainless steel fillings for high-angle conical refiners. Superior fibre development with ERP heat treatment for extended service life.
JC-0 Compatible Refiners
Available in 13 bar patterns (Microbar to Trimming Coarse) with rib widths from 1.2mm to 8.0mm. ERP technology for energy-efficient refining.
RTC 1000 / 2000 / 3000 / 4000
Cast and fabricated fillings for tricone refiners. Available in multiple bar patterns for hardwood, softwood, mechanical pulp, and broke refining.
Key specifications at a glance
JC-0 series available in 13 bar patterns. Monoblock fillings for Jordan 1R-3R, Jones, Claflin 101-303, F9 refiners. Tricone fillings for RTC 1000-4000 in cast and fabricated types.
From JC-0 series to Monoblock and Tricone fillings — Parason covers every conical refiner model with ERP® technology for longer life and better economy.
